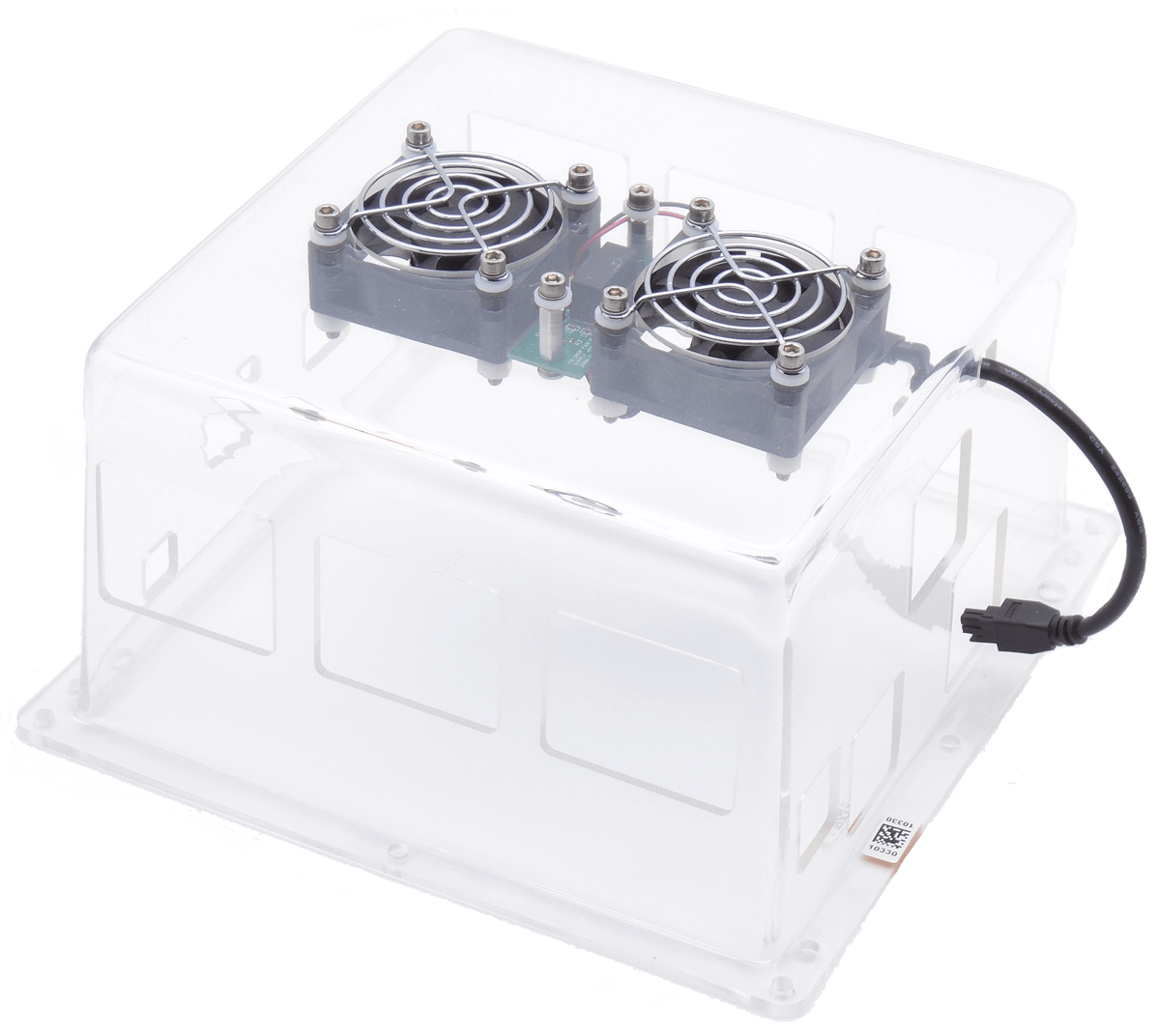

FX-2120 Protective Cover

FX-2120 Protective Cover

The optically-clear protective cover provides physical protection for the  FX-2100 UMC and FX-2000 series module electronics while allowing convenient inspection of their diagnostic LED indicators. In addition, the cover is equipped with a dual 12-volt cooling-fan-system that operates automatically with heatsink equipped or relay equipped 2000-series I/O modules. A dedicated, wide-input range, regulated output DC-to-DC power converter ensures constant fan-speed (cooling air flow) independent of AC, DC or battery input power variations.

The FX-2120 installs on the FX-2110 Mounting Plate. Installation mounting hardware kit supplied.

Available October 2019

Please Contact Us for a Price and Delivery Quotation



SKU: 2000-2122000 Category:

Material: Plexiglass (transparent acrylic), 0.1″ typical wall-thickness

Fans: Dual 12 volt DC, 23-CFM (46 CFM total)

Fan Protection: Locked rotor (stall) protected with auto-restart after the locked rotor condition is removed

Fan Noise Level: 33.5 dBA/fan

Fan Power Supply: Wide input-range, regulated output DC-to-DC converter (10 – 33 VDC to 12 VDC), galvanically isolated, and overload protected

Fan Current Consumption: See the I & O Manual Section II, paragraph FX-2120 Protective Cover Fan Current Consumption for details

Fan Operation: Automatic when using heatsink equipped or relay equipped FX-2000 series I/O modules; FX-2100 UMC fan control system provides 10-second on-off hysteresis and inhibits fan operation below +4˚ C

Installation Mounting Hardware Kit: Supplied



Weight 1.4 lbs
Dimensions 9.3 × 9.3 × 4.8 in
