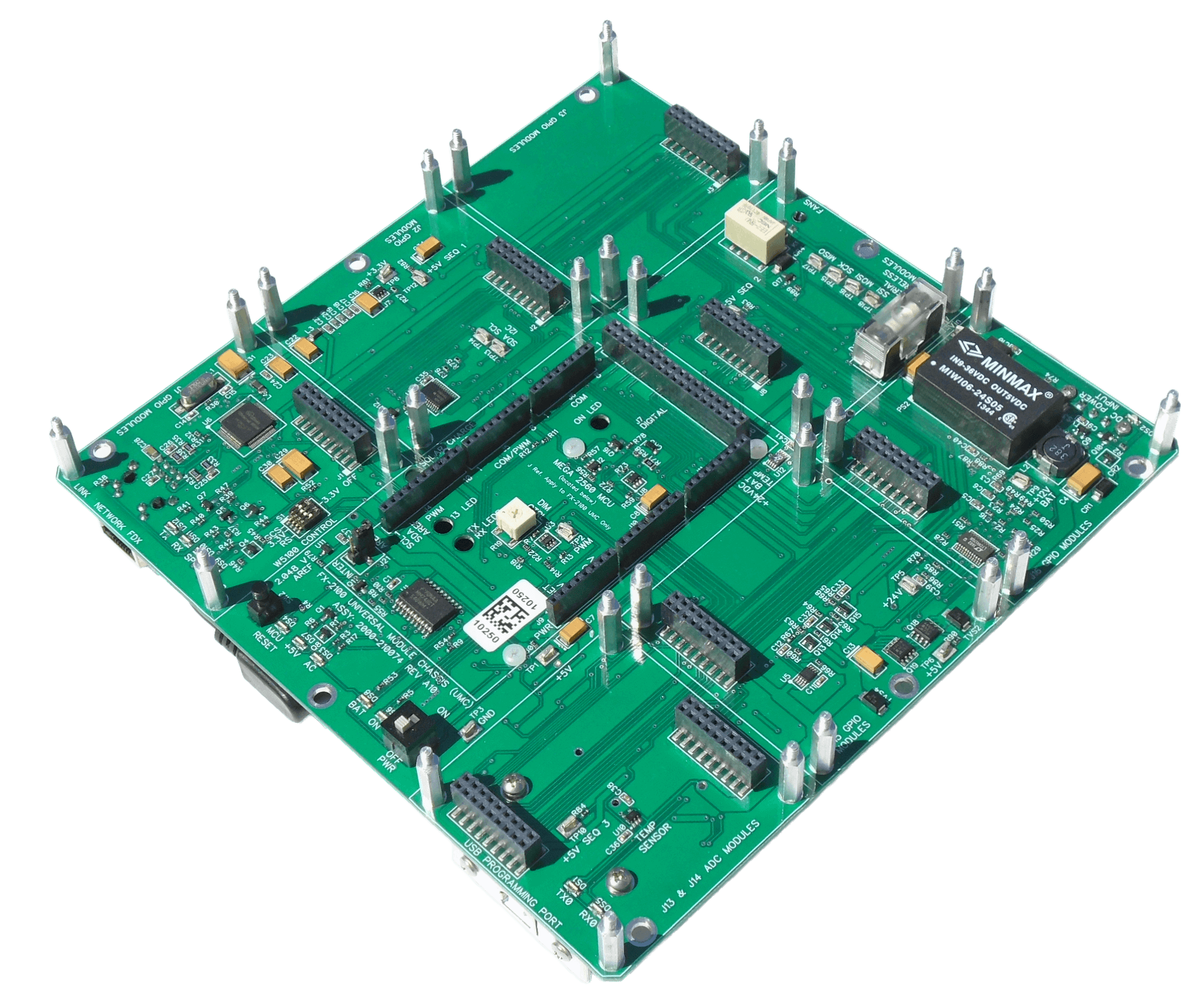

Microcontroller (MCU) Compatibility: Arduino Mega-2560 MCU . The Arduino Mega-2560 is not supplied with the FX-2100 UMC and is sold separately
Plug-In I/O Module Positions: Five stackable 8-bit GPIO module positions (up to ten GPIO modules); one 16-channel 10-bit A/D module position; one serial data/wireless position; one AC UPS; one Arduino Mega-2560 MCU position (sold separately)
Mega-2560 MCU I/O Access & Connector Support: Access to 44 GPIO ports; 16 A/D ports; three TX/RX serial com ports; I2C bus with switch allowing up to four address selections per module position; SPI; simultaneous support of native Arduino shields or custom designed shields; USB type-B programming connector with TX & RX LED data activity indicators
Mega-2560 MCU Isolation: Galvanic isolation of GPIO, serial data ports & AC power supply when using FX-2000 series isolated modules
DC Power Supply: Integrated galvanically isolated, overload protected, wide input voltage range switching DC-to-DC power converter and supervisory circuit.
DC Input: +10 to +33 VDC, reverse polarity protected (-40 VDC max); transient voltage protection; 1.5 kVDC isolation (input-output); input power LED indicator
+5 Volt Output: +5 VDC ±2% @ 5 W, load regulation: ±1%, ripple/noise:< 50 mVpp, supervisory circuit & three stage power-up sequencer, under/over voltage and short circuit protection, current limit and thermal limit with automatic reset
Power Supply Switches & Status Indicators: +5 volt power on/off switch; MCU reset pushbutton; individual power supply status LED indicators: DC, AC, BAT & ON
Network Controller: Integrated W5100 Internet enabled 10/100 Ethernet controller with TCP/IP stack and integrated Ethernet MAC & PHY and control via the SPI bus
Network Controller Field Connection: Single RJ45 with 10/100 BASE-TX magnetics (1.5kV isolation)
Network Controller LED Status Indicators: Link, full duplex, TX, RX, collision, speed & reset
General
LED Illumination Level Control: High–efficiency pulse width modulator (PWM) system, user adjustable 5% to 95% illumination level control for the FX-2100 UMC and plug-in I/O module dimmable LED indictors
A/D Voltage Reference: 2.048 VDC ±0.1%, user on/off configurable
Temperature Sensor: TMP36 temperature sensor, 10 mV/˚C ±2˚C typical, ADC port-15 operation, user shunt-jumper on/off configurable
Fan Delay Timer: FX-2120 Protective Cover cooling fan 10-second off delay ±10 %; low temperature disable below +4˚C with ±2˚C hysteresis
UMC Size & Weight: 7.75” D x 7.75” W x 2.25” H, 10.5 oz with the Arduino Mega-2560 installed
Operating Temperature: -20˚ C to +55˚ C
Humidity: 95% @ +55˚ C
